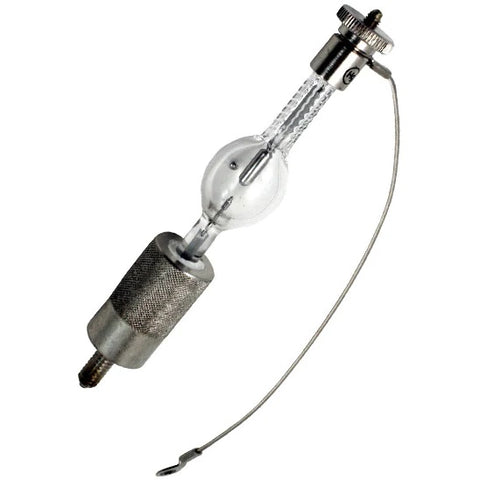

Ushio EmArc Enhanced SMH-850/SB1 Metal Arc Discharge Lamp - 5001634
17 In Stock! Same Day Shipping Through 3PM CST! Need more? Call today @ 888.391.5596
Ushio EmArc Enhanced SMH-850/SB1 Metal Arc Discharge Lamp - 5001634
Features & Benefits
- Up to 60 lumens per watt efficacy two times that of Xenon sources
- Highly durable, rugged elliptical and parabolic reflector designs – very high light path efficiencies for small diameter fiber optic bundle applications
- Precise filling control, electrode design and tight manufacturing tolerances with tipless arc tube construction allows for tightly confined and stable plasma discharge, long life with minimal color temperature drift over life, better optical control, no shadowing
- Far better color control over life than conventional metal halide lamps
- Hot reignition
- Power is 850 watts – versatility/ power tunability
- Custom reflector designs available
- Small arc gap sizes – down to 3.5 mm highly effective optical collection capability
- Unique hybrid gas discharge technology – 1,000 hours of life; no internal pressure when cold
- Operation on lower cost DC power supplies reducing OEM system design costs
- 6000K correlated color temperature – Xenon-like light for crisp, white imaging
Applications
- Medical fiber optics for endoscopy or headlight illumination
- Biotechnology / Micro-Array
- Industrial UV Curing
- Machine Vision
- Cosmetic Dentistry
- Projection / Entertainment
- Microscopy
- Boroscopy
- Phototherapy
Ushio SMH-850/SB1 Specifications:
- Ordering Code: 5001634
- Lamp Series: EmArc
- Voltage: 90
- Wattage: 850
- Amperage: 9.4
- Burn Position: V
- Color Temp: 6000K
- Arc Gap: 3.5 mm
- Luminous Flux: 70000 lm
- Life: 1000 hr
- Diameter: 21 mm
- MOL: 135.5 mm
- Light Center Length: 104.5 mm
Works with the following units and more
- Strong International Radiance
While we are working to ensure each image we have posted is accurate, there may be items with an incorrect or missing image. Please be sure you are ordering the correct model.
If you have any questions about the 5001634 do not hesitate to contact via email at products@jaspertronics.com or by phone at 888-391-5596
