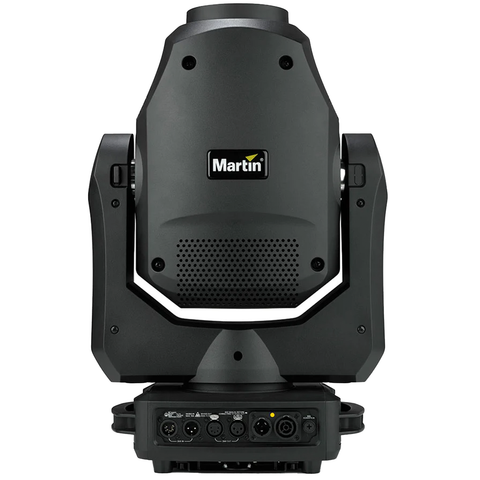

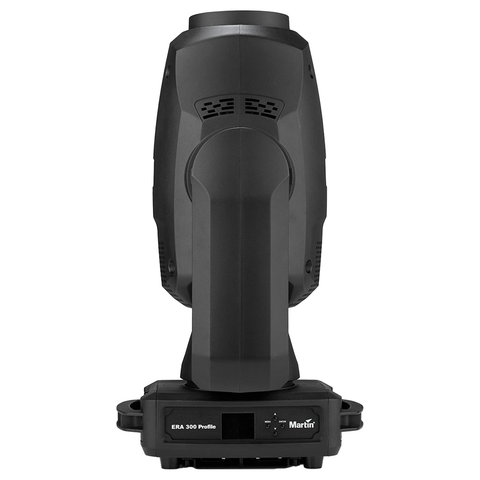

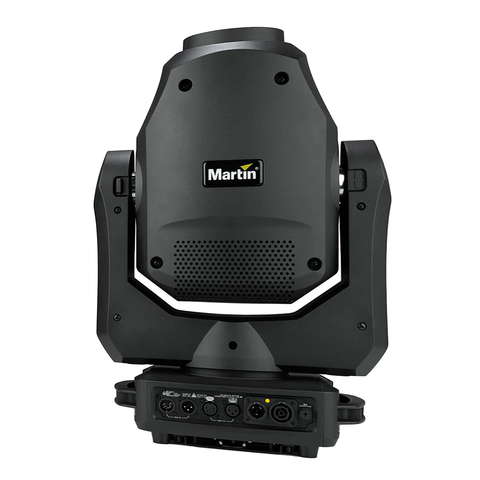

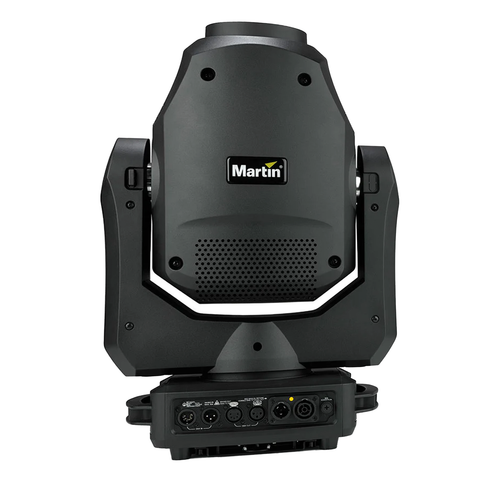

The Martin ERA 300 Profile is a very compact profile fixture with an extremely efficient 260W white LED engine that produces a sharp gobo projection with a flat field and more output than typically associated with similar-sized and featured fixtures. This modern, everyday workhorse is designed to fit anywhere, is easy to handle and rig, takes up less truck space, and boasts professional features, including CMY color mixing and 1:2 zoom and 9,500 lumens of output. Additional features include electronic dimming and strobe; color wheel; two layers of gobos, including rotating gobos; iris; rotating prism and pan/tilt.

The electronic dimming feature ensures extremely fast strobing, instant intensity control and the ability to maintain a consistent flat field down to zero percent. Onboard CMY color mixing offers wide-ranging versatility from subtle pastels to deep, vibrant colors, as well as fast transitions and smooth fades. And, with 13 to 28 degrees of zoom, the ERA 300 Profile is perfect for various trim heights and is wide enough to ensure great coverage on smaller stages.

The Martin ERA 300 Profile also delivers increased ROI with minimal maintenance. The steady, stable LED source eliminates worries of lamp aging, loss of output, shifts in color temperature, and fans sucking dirt through the optical path. And, the modular design makes maintenance extremely safe, quick, and easy. The ERA 300 Profile is built for the road and is ideal for small and mid-sized concerts and touring, live TV productions, corporate shows, cruise lines and houses of worship.

Features
260 watt / 6,500K LED light source	9,500 lumen output
Full feature set including CMY color mixing and 1:2 zoom	Crisp optics with flat field
Very compact and low weight design

Specifications
Physical
Length	375 mm (14.8 in.)
Width	217 mm (8.5 in.)
Height	564 mm (22.2 in.)
Weight	17kg (38.0 lbs)
Dynamic Effects
Color mixing	CMY, independently variable 0-100%
Color wheel	9 color filters plus open
Beam effects	Rotating three-facet prism
Rotating gobo wheel	7 gobos plus open, wheel rotation, gobo rotation, indexing and shake
Static gobo wheel	9 gobos plus open, wheel indexing, rotation and shake
Iris	0-100%
Zoom	Motorized
Electronic dimming	0 - 100%, four dimming curve options
Electronic shutter effect	Strobe effect, pulse effects, instant open and blackout
Pan	540°, coarse & fine control and speed
Tilt	260°, coarse & fine control and speed
Focus	Motorized
Control and Programming
Control options	DMX
Setting and addressing	Control panel with backlit LCD display
16-bit control	Dimming, pan and tilt
DMX channels	21
DMX compliance	USITT DMX512/1990
RDM compliance	ANSI/ESTA E1.20
Transceiver	Opto-isolated RS-485
Optics
Zoom range	13° - 28°
Light source	260W LED engine
Minimum LED lifetime	20,000 hours (to >70% luminous output)*
Binning	Tight color and flux binning
*Manufacturer´s figure obtained under manufacturer´s test conditions.
Photometric Data
Light engine luminous output	20,000 lumens
Fixture luminous output	9,500 lumens
CRI (Color Rendering Index)	>70
CCT	6500 Kelvin
LED refresh rate	1200 Hz
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
Construction
Housing	High-impact flame-retardant thermoplastic
Color	Black/White
Protection rating	IP20
Gobos
Gobo diameter	26.8 mm +/- 0.2 mm (1.1 in. +/- 0.008 in.)
Maximum image diameter	19.0 mm (0.75 in.)
Gobo thickness, maximum	1.1mm borosilicate glass
Installation
Mounting points	Two quarter-turn brackets for rigging clamps
Orientation	Any
Connections
AC power in, thru	Neutrik powerCON TRUE1
DMX data in/out	3-pin & 5-pin locking XLR
Electrical
AC power	100-240 V AC nominal, 50/60 Hz
Power supply unit	Auto-ranging electronic switch mode
Power Factor	0.99 @ 120 V / 230 V
Typical current draw	3.1 A @ 120 V , 1.6 A @ 230 V *
Power Consumption
Typical: 374 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: full output white, no effects moving, regulated fan speed.
Thermal
Cooling	Forced air (temperature regulated, low noise)
Maximum ambient temperature (Ta max.)	40° C
Minimum ambient temperature (Ta min.)	0° C
Environmental
RoHS	Compliant
REACH	Compliant
WEEE	Compliant
Proposition 65	Compliant
Efficacy (max output)	30.3 lm/W
LWR*	559 lm/kg (250 lm/lb)
LWR = Lumen-to-Weight Ratio
Approvals
Global CB Certification/IECEE	IEC 60598-2-17 (IEC 60598-1)
EU safety	EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC	EN 55015; EN 55032; EN 55103-2; EN 61000-3-2,-3; EN 61547
US safety	UL 1573
US EMC	FCC Part 15 Class B
Canadian safety	CSA C22.2 No. 166
Canadian EMC	ICES-003 Class B, ICES-005 Class B
Australia/NZ	RCM
Included Items
Power cable	1.5 m (4.9 ft.) 18AWG/0.75 mm2 without mains plug
Omega brackets	For rigging clamp attachment
