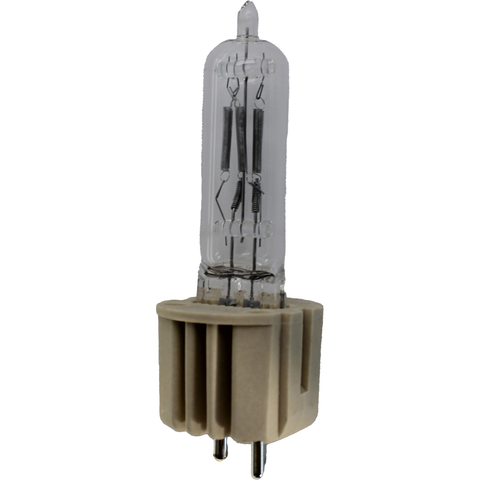

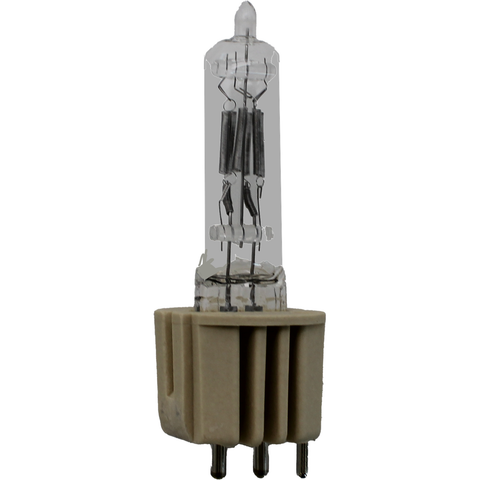

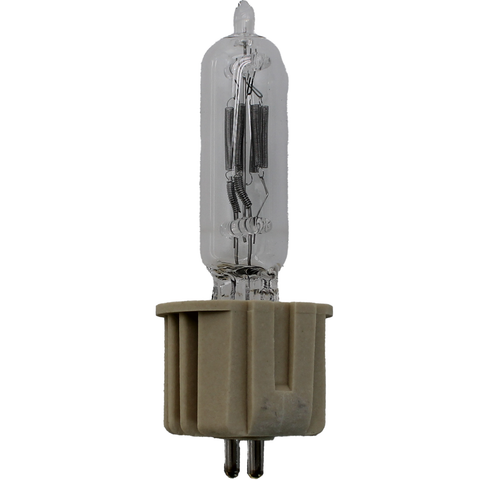

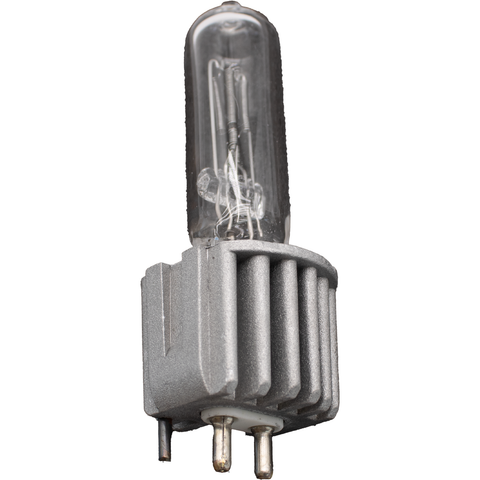

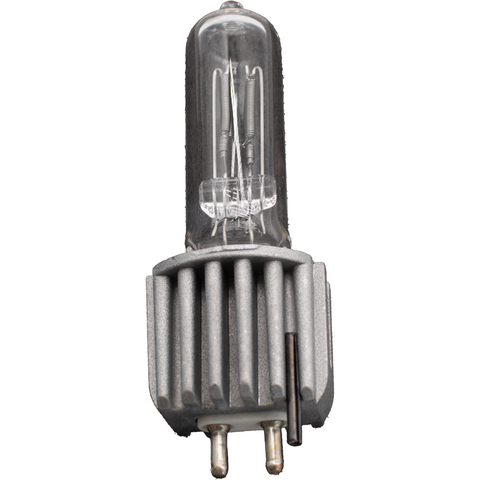

Osram Sylvania HPL 750W 120V 300HR Stage & Studio Lamp 750/120 - 54605
676 In Stock! Same Day Shipping Through 3PM CST! Need more? Call today @ 888.391.5596
Product features and benefits
- Ultra compact filament design (UCF) for high lumen output
- Unique top bridgeless construction improves beam uniformity for lamps with ≤ 120 volts
- Unique gas fill which improves light output and minimizes risk of arc-out

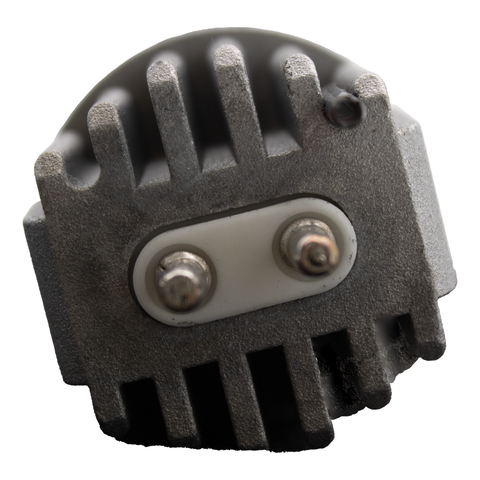

- Special heat sink base for maximum durability in high temperature applications
- Reinforced pinch seal for extra mechanical strength
- Foam packaging for easier handling and installation
- Optimum system performance with TP22H socket
Areas of application
- Stage and theatre
- Studio, TV and film
- Architecture & Architainment
Technical Data
General product information
Product Number
54605
Product Name
HPL750120 (UCF) 120V 12/CS 1/SKU
Ordering Abbreviation
HPL 750/120 (UCF)
Brand Name
OSRAM
Family Brand Name
HPL
General Description
750 watt, tungsten halogen, HPL series
Application
Stage & Studio
Electrical data
Nominal Wattage
750 W
Nominal Voltage
120 V
Type of Current
AC
Light technical data
Luminous Flux
21900 lm
Light Center Length - LCL (in)
2.352 in
Light Center Length - LCL (mm)
60.3 mm
Color Temperature
3250 K
Color Rendering Index
100
Average Rated Life
300 h
Physical attributes
Base
G9.5 with Heat Sink
Bulb Shape
T6
Maximum Overall Length (in)
4.1 in
Maximum Overall Length (mm)
104 mm
Length l (in)
4.1 in
Length l (mm)
104 mm
Length l max. (in)
4.1 in
Length l max. (mm)
104 mm
Diameter d (in)
0.748 in
Diameter d (mm)
19.00 mm
Distance a (in)
2.352 in
Distance a (mm)
60.3 mm
Filament
4-C8
Reflector Coating
19.00
Additional product data
Operating Position
Any
Class
C (gas)
Lamp Type
SINGLE END
While we are working to ensure each image we have posted is accurate, there may be items with an incorrect or missing image. Please be sure you are ordering the correct model.
If you have any questions about the 54605 do not hesitate to contact via email at products@jaspertronics.com or by phone at 888-391-5596
