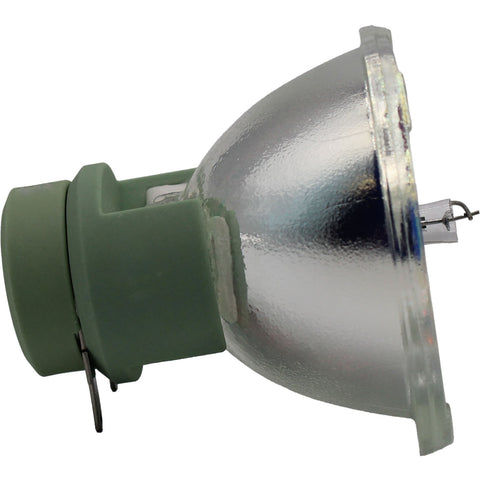

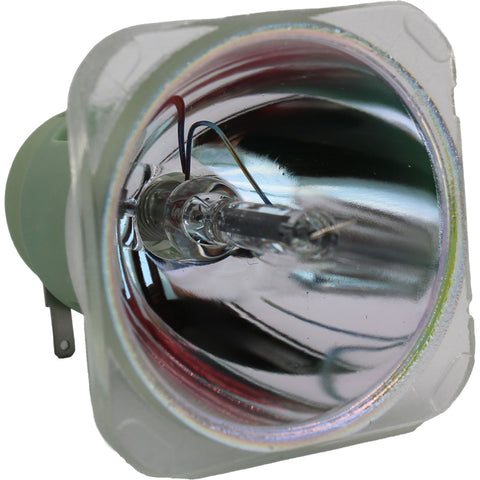

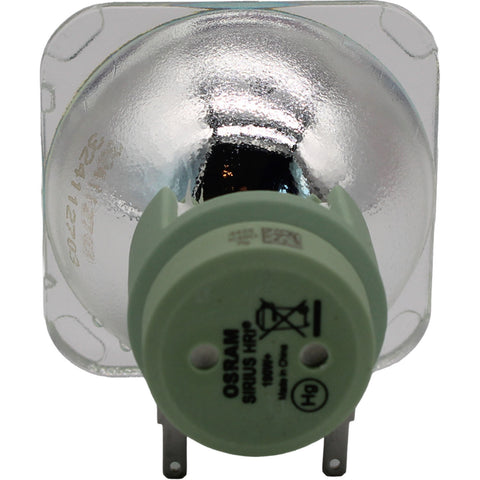

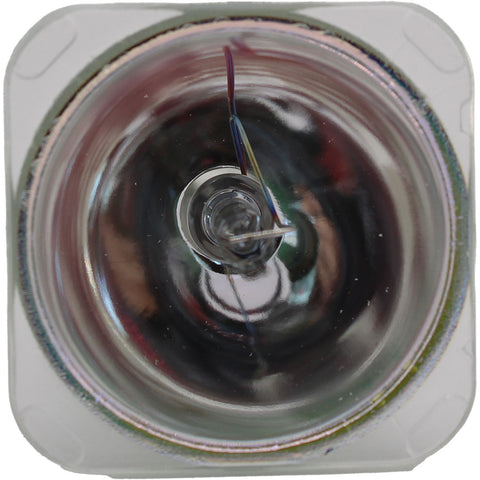

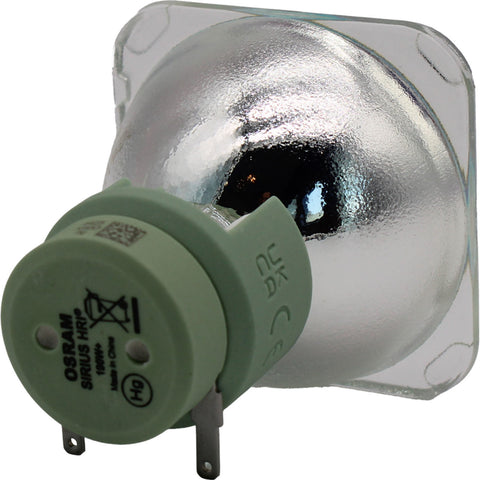

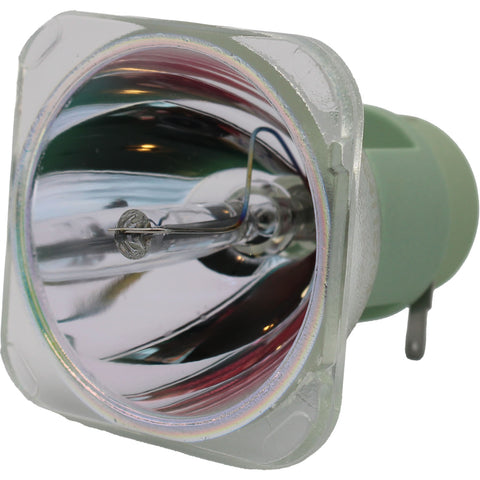

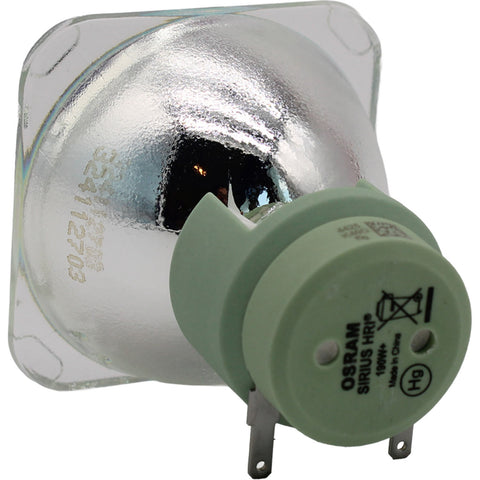

Osram Sirius HRI 190W+ Moving Head Light Discharge Lamp - 5R - 54402
10 In Stock! Same Day Shipping Through 3PM CST! Need more? Call today @ 888.391.5596- Lightweight and compact E20.6 reflector lamps
- Perfectly suited for small and lightweight moving heads
- Optimized burner design allows any burning position
- High luminance through very short arc and high pressure
- Bright light for brilliant light effects
- Long lifetime
- Easy lamp replacement
- Stable light output over the entire lifetime
- Concert lighting
- Club and disco
- Stage and theater
- Studio, TV and film
- Architecture & Architainment
Safety advice
Because of their high luminance, UV radiation and high internal pressure during operation, SIRIUS HRI lamps may only be operated in enclosed lamp casings specially constructed for the purpose. Appropriate filters must ensure that UV radiation is reduced to an acceptable level. Mercury is released if the lamp breaks. Special safety precautions must be taken. Information on safety and handling is available on request or can be found in the leaflet included with the lamp or in the operating instructions.
For Use In: Acme XP-5R BEAM, Claypaky Sharpy as well as other applications.
Technical Data
Electrical data
Nominal wattage
190.00 W
Nominal current
2.7 A
Nominal voltage
70.0 V
Ignition voltage
2.5 kVp
Photometrical data
Nominal luminous flux
8100 lm
Color temperature
8200 K
Color rendering index Ra
73
Maximum color temperature
8200 K
Light technical data
Focal length
34.5 mm
Aperture window, maximum
5x3.8 mm
Dimensions & weight
Diameter
51.0 mm
Length
54.2 mm
Arc length
0.8 mm
Lifespan
Lifespan
3000 h
Capabilities
Burning position
Any
Cooling
Forced
Certificates & standards
EEI €“ Energy Label
A
Cross Reference:
- OSRAM 54402 SIRIUS HRI 5R 190W+
- Philips MSD Platinum 5R 249888
- Philips MSD Platinum 5R 243527
- ACME XP-5R BEAM
- Clay Paky Sharpy
- American DJ Vizi Beam 5R
- American DJ Vizi Spot 5R
- DTS Jack
- Ehrgeiz Cobalt Plus 5R
- Ehrgeiz Cobalt Plus Beam 5R
- Ehrgeiz Cobalt Plus Spot 5R
- Elation Professional Platinum Beam 5R
- Elation Professional Platinum Spot 5R
- Elation Professional Platinum Spot 5R Extreme
- Futurelight PLB-5R
- Futurelight PLS-5R
- Jolly X-Beam 5R
- Jolly X-Spot 5R
- PR Lighting XR 200 Beam
- Terbly JT160-E
- Terbly JT160B
- Terbly PT 189B
- Terbly PT160 Pro
- Terbly PT160B
- Terbly PT160B Pro
- Triton Blue 5R-Beam
- Triton Blue 5R-Beam-Pro
- Triton Blue 5R-Spot
While we are working to ensure each image we have posted is accurate, there may be items with an incorrect or missing image. Please be sure you are ordering the correct model.
