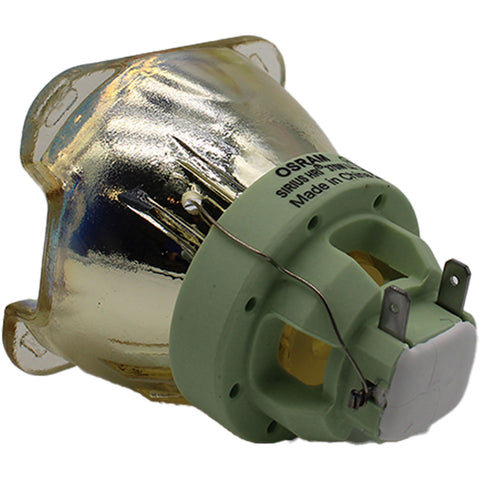

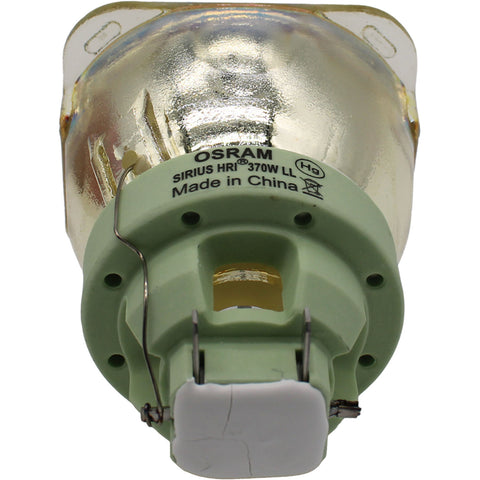

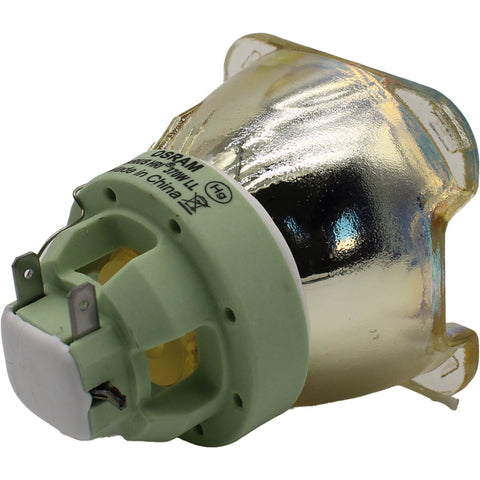

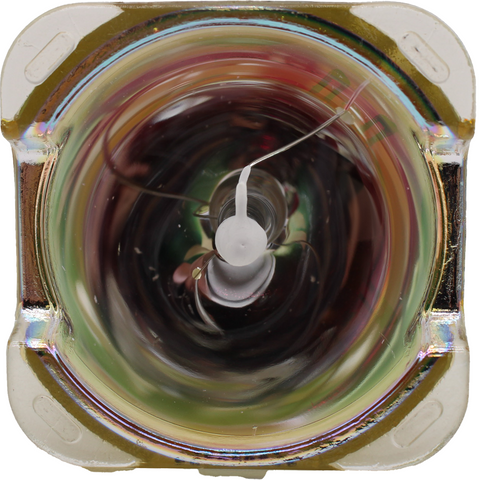

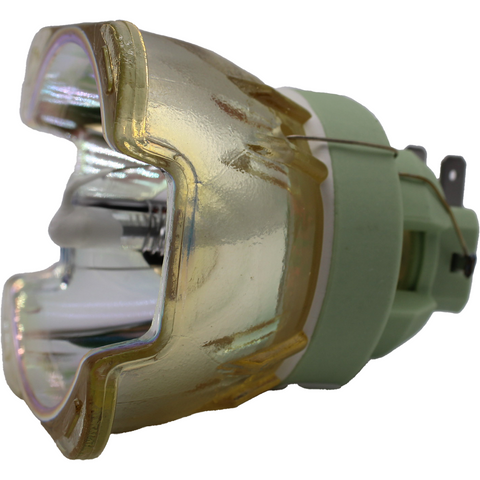

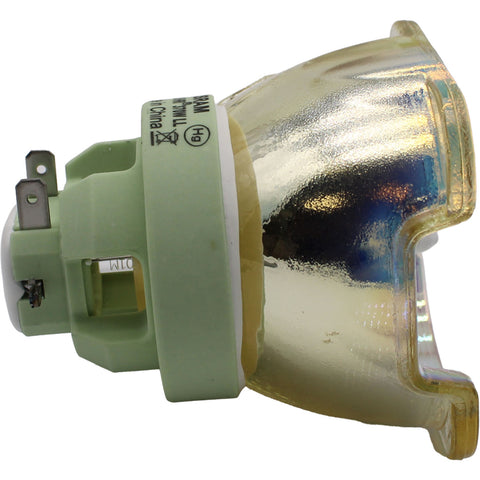

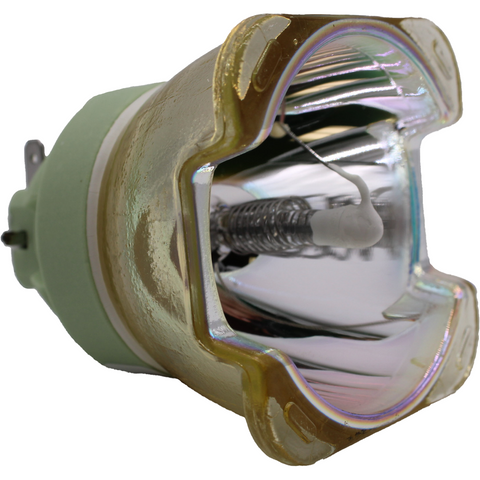

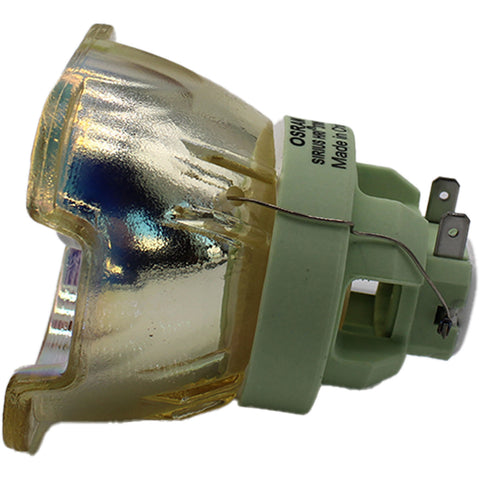

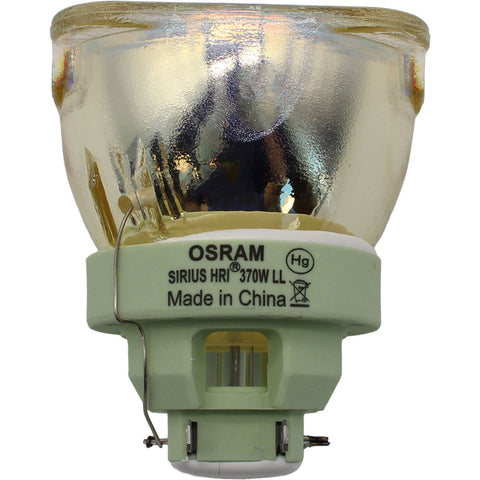

Osram Sirius HRI 370W LL Moving Head High Intensity Discharge Light Bulb - 55236
4 In Stock! Same Day Shipping Through 3PM CST! Need more? Call today @ 888.391.5596- Lightweight and compact E20.9 reflector lamps
- Perfectly suited for small and lightweight moving heads
- Optimized burner design allows any burning position
- High luminance through very short arc and high pressure
- Bright light for brilliant light effects
- Long lifetime
- Easy lamp replacement
- Stable light output over the entire lifetime
- Concert lighting
- Club and disco
- Stage and theater
- Studio, TV and film
- Architecture & Architainment
Safety advice
Because of their high luminance, UV radiation and high internal pressure during operation, SIRIUS HRI lamps may only be operated in enclosed lamp casings specially constructed for the purpose. Appropriate filters must ensure that UV radiation is reduced to an acceptable level. Mercury is released if the lamp breaks. Special safety precautions must be taken. Information on safety and handling is available on request or can be found in the leaflet included with the lamp or in the operating instructions.
The SIRIUS HRI 370W LL bulbs is used in following equipment: as well as other applications.
Technical Data
General product information
Product Number
55236
Product Name
SIRIUS HRI 370W LL 2/CS 1/SKU
Ordering Abbreviation
SIRIUS HRI 370W LL 2/CS 1/SKU
Brand Name
OSRAM
Family Brand Name
SIRIUS HRI
General Description
Mercury Vapor, 370 watts, Long Life, with reflector
Application
Moving head fixtures
Product Remark
The operating conditions in long-life mode makes use of extreme dimming (ED) periods during shutter-closed phases to allow for extended lifetime. Using full power at all times will reduce the lifetime.
Electrical data
Nominal Wattage
370 W
Nominal Voltage
73 V
Light technical data
Luminous Flux
18000 lm
Working Distance a (mm)
37.4 mm
Color Temperature
7400 K
Color Rendering Index
86
Average Rated Life
1500 h
Physical attributes
Bulb Shape
REFLECTOR
Length l (mm)
72 mm
Diameter d (mm)
58 mm
Electrode Gap - cold (mm)
1.2 mm
Additional product data
Operating Position
Any
Forced Cooling
Required
