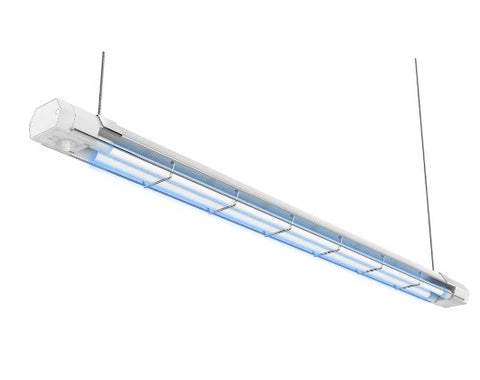

Jaspertronics™ 80W Germicidal UV-C 254nm High Bay Tube Light with Remote & Safety Sensors

6 In Stock! Same Day Shipping Through 3PM CST! Need more? Call today @ 888.391.5596
  • $ 149.99
  • Save $ 50.00




The 80W Germicidal UV-C 254nm Linear High Bay Tube Light offers advanced ultraviolet purification, effectively disinfecting enclosed spaces like schools, restaurants, and offices. Mounted on the ceiling, it purifies 4.57 square meters in just 1 minute, eliminating 99.9% of bacteria. Equipped with a remote control, 18-second delay start-up, and built-in microwave and PIR sensors, it ensures safety and efficiency. Its mirror aluminum design enhances purification intensity, while high-strength steel provides protection.

Certified by CE, RoHS, FCC, ETL, FDA, and EPA, it's a reliable choice for high-efficacy purification.

Base G5




Germicidal UV-C 254nm Linear High Bay Tube Light

Lamp Specifications

Specifications Data
Product Code U12-80W-01
Lamp Type UVC
Lamp Base G5
Color Matt Silver
Wave length 254 nm
Wattage 80W±15%
Voltage 100-120V AC
50~60Hz
Operating Temperature -5~+40 °C
Dimensions (L) 1313 mm X (W) 67 mm X (D) 54 mm
Life span 9000 H
Warranty 1 Year Warranty




Features:

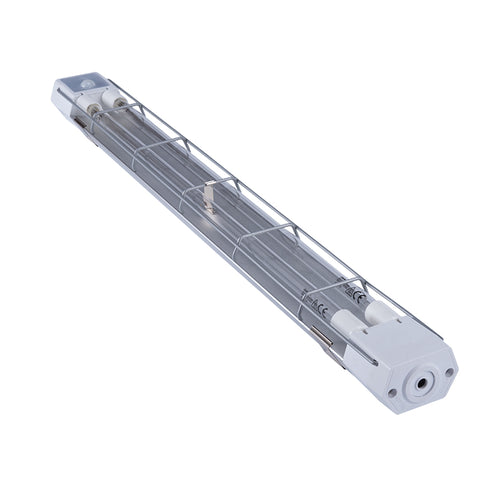

  • Quartz Tube
  • Wireless Remote
  • 18s delay start-up
  • Ozone-free UV
  • Microwave and PIR Sensor Built-in
  • Effectively kill 99.99% mites
  • Effectively kill parasites
  • Effectively kill virus
  • UV Irradiation

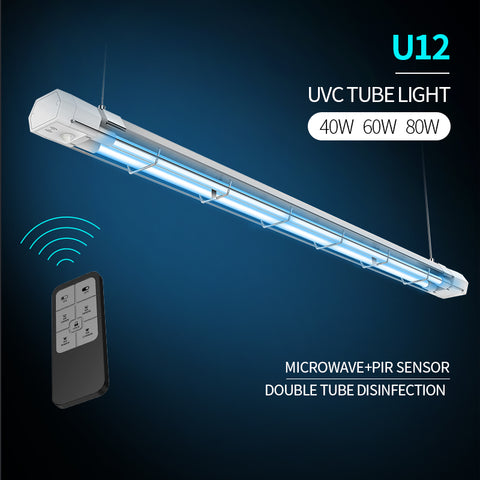

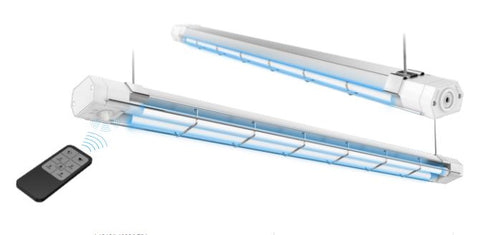

Wireless Remote:

Wireless remote helps to operate at a safe distance, ensuring that you can properly follow all UVC usage safety precautions.

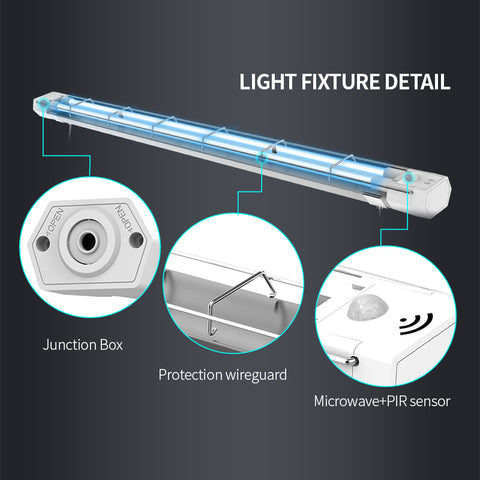

Built-in Microwave + PIR Sensor:

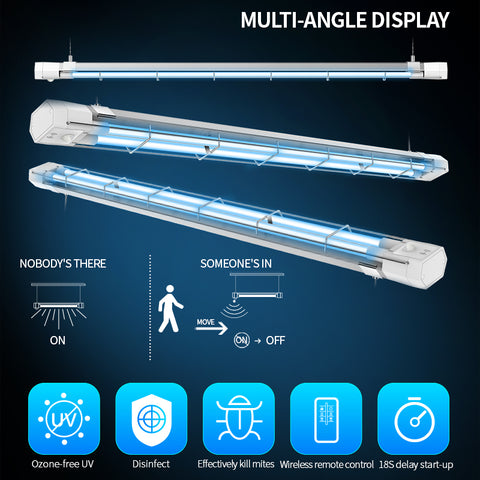

The built in sensors will shut down the device when it senses human activity for added safety support, resuming operation when the space is clear.

FAQ

1. What is the coverage area of the high bay if hung from the ceiling 8.2 Feet (2.5 meters) from ground?------ It is (L)14.5 feet x (W)11.12 feet ( (L)4.46m x (W)3.39m )

2. I assume, as it is rectangular, the coverage will be the same. But what coverage area will get sufficient dosage?----- the distance between two UVC high bays should be less than 11.5 feet (3.43m) to maintain proper dosage to all areas of the space.

3. What is the minimum distance they should be from each other for proper operation? The distance between two UVC high bays should be less than 11.5 feet (3.43m) to maintain proper dosage to all areas of the space. As you know the microwave sensor have an effect on each other,so the min. distance for each two UVC high bay fixtures have to be over 0.5 meters. From the below Ultraviolet radiation intensity of our GKU12-80W-01 UVC high bay fixture,we can see the radiation from 3 meters is getting weak, our suggestion minimum distance from each other is around 2 meters.

    Shipping Policy

    Ask a Question

    THE U12-80W-01 IS CENTRALLY LOCATED & SHIPPING FROM MISSOURI, USA!
    American Flag

    While we are working to ensure each image we have posted is accurate, there may be items with an incorrect or missing image. Please be sure you are ordering the correct model.

    If you have any questions about the U12-80W-01 do not hesitate to contact via email at products@jaspertronics.com or by phone at 888-391-5596
