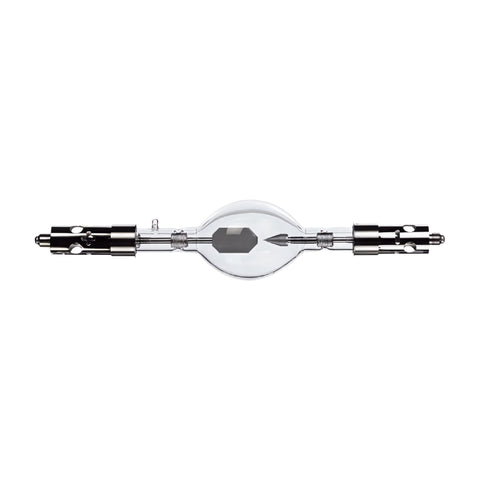

Philips LTI XDC-7000C 7000W Digital Cinema Xenon Lamp for Christie Cinema Projectors
100 In Stock! Same Day Shipping Through 3PM CST! Need more? Call today @ 888.391.5596New Jaspertronics™ OEM LTI Xenon lamp for the following Christie Digital Cinema Projection models: CP2230, CP4320, CP2000-S, CP2000-H, Roadie 25K, Roadie 4K45, and the CP2000-XB
Click here to open the Manufacturers Data Sheet
Click here to open the Manufacturers Data Sheet
Lamp Specifications |
|
|---|---|
| Specifications | Data |
| Rated Power | 7000 W |
| Rated Current | 166 A |
| Operating Current Range | 125-175 A |
| Rated Voltage | 42 V |

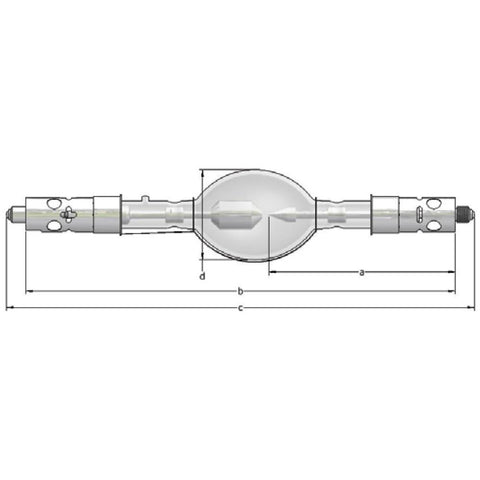

| Distance a | 165.5 mm |
| Length b | 381 mm |
| Length c (max) | 419 mm |
| Cold arc gap | 8 mm |
| Bulb Diameter d | 80 mm |
| Anode (+) Base Diameter | 30 mm |
| Anode Pin Diameter | 14 mm |
| Cathode (-) Base Diameter | 30 mm |
| Cathode Thread Type | M14 x 1.5 |
| Cable Length e | na |
| Min. Cooling Air Flow Velocity | m/sec |
| Base Surface Temperature (max) | 200 d C |
| Warranty | 350 hours (100%) |
| Average Expected Life (H)* | 500 |
* Average expected life is a guideline to help determine how long a lamp can be operated under optimal conditions. If the operating situation is not optimal, a shorter life can be expected.
Non-optimal operating conditions include:
- Starting the lamp at 100% and running at this level throughout lamp life.
- Not providing adequate air flow.
- Poor operating environment.
Please note: Xenon lamps that must be configured or calibrated before shipment cannot be returned.
While we are working to ensure each image we have posted is accurate, there may be items with an incorrect or missing image. Please be sure you are ordering the correct model.
If you have any questions about the XDC-7000C do not hesitate to contact via email at products@jaspertronics.com or by phone at 888-391-5596
Buy Smart, Buy Bright, Buy Jaspertronics!
