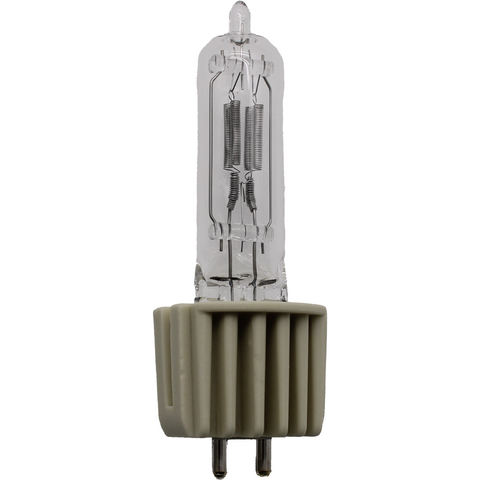

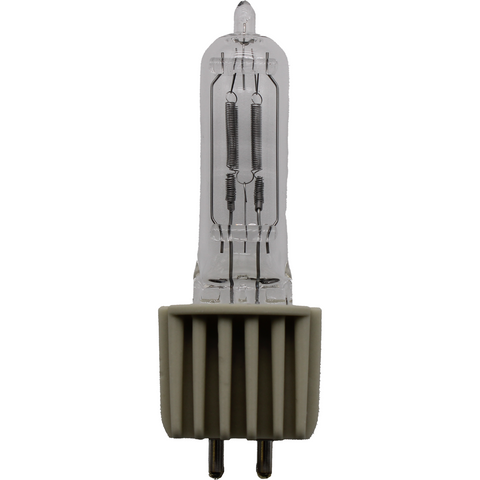

Introducing the revamped Ushio HPL+ lamp, now the most powerful HPL available. With its newly designed ultra-compact filament, this lamp enhances the optical efficiency of your ETC Source Four™ fixtures, delivering up to 20% more lumens—meaning you get more light without changing the fixture.

Unlike competing HPL lamps, which have larger filament dimensions, Ushio’s innovative 6.0mm x 9.5mm filament design was developed in collaboration with ETC engineers. This compact profile optimizes light distribution, maximizing both axial and radial efficiency.

The precise optics of the Source Four require equally precise lamp engineering. Ushio has addressed this need by creating a reduced geometry filament that meets high manufacturing standards. Enjoy measurable performance, reliable quality, a range of lamp types, and cutting-edge design tailored for your theatrical needs.

DATA SPECIFICATIONS

USHIO Item Code	1000672
Product Series	HPL
Prod. ID / ANSI Code	HPL-575/120V++
Description	HPL-575/120V++, JS120V+-575WC, 1500 Hour
Description 2	575W 120V+
Item Type	Halogen
Base	HT/SNK
Voltage	120
Wattage	575
Burn Position	ANY
Bulb Shape	T6
Bulb Finish	CLEAR
Color Temp (K)	3250
Efficacy (lm/W)	28.1
Filament	4-C8
Front Glass Cover	NO
Initial Lumens (lm)	16520
Luminous Flux (lm)	16520
Life (hr)	300
Diameter (mm)	18.35
MOL (mm)	104
Light Center Length (mm)	60.3
Case Qty	10
