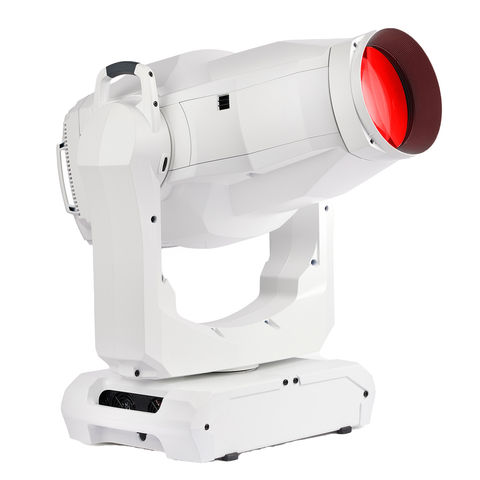

The MAC Ultra Performance White Finish has raised the bar for extremely bright moving lights and features benchmark output across the zoom range, a true next generation framing system, higher definition optics and astoundingly low noise levels.

Built to support the biggest live events, this powerful workhorse is based on our all new 1150 W, 5800 K proprietary LED light engine and the fixture pushes an incredible 46,500 lumens in projection. The 50,000+ hour light engine also provides high resolution dimming, strobing and Martin’s unique Animotion™ effect.

A 1:7 zoom-range and precision focus-control is provided from the refined optical system. The extensive feature package includes uniform color mixing, variable CTO, additional color and spectral correction filters, Martin’s innovative Extended Framing system, two layers of rotating gobos, full function animation wheel, iris, frost and prism effects, and truly responsive and accurate pan and tilt. And, these features are all packed into a compact, sturdy and legendary Martin design.

The MAC Ultra Performance is perfect for a wide range of concert and touring productions but is equally applicable for noise-sensitive broadcast and theater stage lighting applications. Simply put, when it comes to workhorse fixtures that push the boundaries of output and performance execution, the MAC Ultra Performance stands boldly in a class all its own.

Features
LIGHT SOURCE
1150 W proprietary LED light engine	84 x 20 W white LEDs
Minimum LED lifetime	>50,000 hours (see specs for further details)
PHOTOMETRIC DATA
Light Engine Luminous Output	90,000 lumens
Fixture Luminous Output	46,500 lumens
Peak Luminous Intensity	3,000,000 cd
CCT	5800 K (+/- 250 K)
OPTICS
160 mm front Lens	1:7 zoom range (8.0° - 54° field angle)
High resolution projection system
DYNAMIC EFFECTS
0 - 100% continuous dimming and strobe effects	Choice of four dimming curves
CMY color mixing	Color temperature control (5800 - 2850 K)
Color wheel with 6 x interchangeable dichroic filters, including Spectral Enhancement Filter	Rotating gobo wheel 1 includes 5 interchangeable gobos + open
Rotating gobo wheel 2 includes 5 interchangeable gobos + open	Gobo animation wheel, indexing, continuous rotation with variable angle
Frost (fade in)	4-facet prism
Iris	Zoom
Focus with auto tracking	Extended Framing module with individual +/- 30° across entire beam and +/- 83° rotation
Pan	540°
Tilt	268°
P3 videomapping of fixture color and/or intensity (10 segments)	Pre-programmed effects: Two ranges of pre-programmed FX
COOLING AND NOISE
Low noise cooling system	User-selectable output vs. sound level control
CONSTRUCTION
Height (head straight up)	864 mm (34.1 in.)
Height (maximum)	876 mm (34.5 in.)
Weight	44.0 kg (97.0 lbs.)
CONTROL
DMX-512 in/out	Ethercon in/out for P3, Art-Net, sACN
Built in Ethernet switch with fail-safe bypass

Specifications
Physical
Weight	44.0 kg (97.0 lbs.)
Minimum center-to-center distance in side-by-side installation	830 mm (32.7 in.)
Length (head)	660 mm (26.0 in.)
Length (base)	468 mm (15.5 in.)
Width (base)	312 mm (12.3 in.)
Width (across yoke)	520 mm (20.5 in.)
Height (head straight up)	864 mm (34.1 in.)
Height (maximum)	876 mm (34.5 in.)
Dynamic Effects
Pre-programmed effects	Two ranges of FX, independent or synchronized/combined
Color mixing	CMY, independently variable 0 - 100%
Color wheel	6 x interchangeable dichroic filters + open (incl. Spectral Enhancement Filter), indexing, continuous rotation, random color
Gobo animation	Interchangeable animation wheel, indexing, continuous rotation with variable angle, speed and direction
Iris	Variable 0 - 100%, pulse effects
Zoom	Motorized
Color temperature control	Variable 5800 - 2850 K
Framing	Rotatable framing module, +/- 83°, 4 x individually controllable full curtain blades with full variable angle (+/- 30°) through the entire insertion path from 0 - 100%
Prism	4-facet, indexing and continuous rotation
Frost	Variable 0 - 100%, second (heavy) frost available as optional replacement for Prism
Dimmer/shutter	0 - 100% continuous dimming, regular and random strobe and pulse effects, instant open and blackout
Dimming options	Choice of four dimming curves
Pan	540°, coarse & fine control and speed
Tilt	268°, coarse & fine control and speed
P3	Videomapping of fixture color and/or intensity with variable crossfade between DMX control and video control
Focus	Motorized, range varies with zoom angle, from approx. 4.5 m (14.8 ft.) to infinity
Rotating gobo wheel 1	5 x interchangeable gobos + open, indexing, continuous rotation and shake
Rotating gobo wheel 2	5 x interchangeable gobos + open, indexing, continuous rotation and shake
Gobo Color Temperature Correction	Automatic
Control and Programming
Control Protocols	DMX, RDM, Art-Net, RDM over Art-Net, sACN and P3
Protocol detection	Automatic
Setting and addressing	Display Menu, RDM, RDM over Art-Net or P3
DMX Modes	Two
DMX channels	Standard 48, Extended 58
16-bit Controllable Parameters	Dimming, Color Mixing + CTC, Gobo Rotation/Indexing, Framing, Iris, Zoom, Focus, Pan and Tilt
Fixture Identification	User-settable ID number
DMX compliance	USITT DMX512-A
RDM compliance	ANSI/ESTA E1.20
Art-Net Compliance	Art-Net 1, 2, 3 and 4; including RDM over Art-Net
sACN Compliance	ANSI E1.31 - 2016
Martin P3 Compliance	P3 System Controller Software 5.1.0 or newer
DMX/RDM Transceiver	Galvanic-isolated RS-485
Ethernet Transceiver	10/100Mbit (with fail-safe bypass)
Firmware update	USB memory device, via DMX using Martin Companion or via Ethernet using P3 System Controller
Local User Interface	Backlit LCD Display with battery-powered operation
Optics
Front lens diameter	160 mm
Zoom range	8.0° - 54° (1:7 field angle)
Light source	84 x 20 W White LEDs in a custom Martin engine
Minimum LED lifetime	>50,000 hours (to >80% luminous output)/ >20,000 hours (to >90% luminous output)*
Maximum Total LED Engine Power	1150 W
Light engine luminous output	90,000 lumens
LED refresh rate	3000 Hz
Fixture luminous output	46,500 lumens
CRI (Color Rendering Index)	66 (+/- 3)
TM-30 Rf (IES TM-30-15 Fidelity Index)	66
TM-30 Rg (IES TM-30-15 Gamut Index)	95
CCT	5800 K (+/- 250 K)
Peak Luminous Intensity	3,000,000 cd
With Spectral Enhancement Filter at 5300 K
Fixture luminous output	23,500 lumens
CRI (Color Rendering Index)	83 (+/- 3)
With CTO and Cyan at 3200 K
Fixture luminous output	12,000 lumens
CRI (Color Rendering Index)	90 (+/- 3)
Construction
Housing	High-impact flame-retardant thermoplastic
Color	Black
Protection rating	IP20
Gobos
Maximum image diameter	30 mm (1.181 in.)
External diameter	37.5 mm +0 / -0.2 mm (1.476 in. +0 / -0.008 in.)
Maximum gobo thickness	1.1 mm (0.04 in.)
Coating	Heavy matted aluminum
Material	Borofloat 33
Installation
Mounting points	2 pairs of 1/4-turn points for 106 mm (4.17 in.) center-to-center omega brackets
Location	Dry location only, must be fastened to surface or structure
Orientation	Any
Minimum distance to combustible materials	0.2 m (8 in.)
Minimum distance to illuminated surfaces	4.75 m (15.6 ft.)
Connections
DMX and RDM data in/out	5-pin locking XLR
AC mains power input.	Neutrik TRUE1 socket, accepts TRUE1 NAC3FX-W (TOP) connector
Ethernet (Art-Net, sACN and P3) in/out, including fail-safe bypass	Neutrik etherCON
Firmware from flash memory	USB 2.0 port
Electrical
AC power	200-240 V AC nominal, 50/60 Hz
Power supply unit	Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 230 V, 50 Hz	17.0 A
Power Factor	0.99 @ 208 V / 230 V / 240 V
Max current draw	8.0 A @ 208 V , 6.7 A @ 230 V / 240 V
Typical current draw	6.8 A @ 208 V , 6.0 A @ 230 V , 5.8 A @ 240 V *
Power Consumption	Maximum: 1450 W, Typical: 1380 W *, Idle: 100 W *, Hibernation: 55 W *
* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Thermal
Cooling	Forced air (temperature regulated, low noise)
Maximum ambient temperature (Ta max.)	40° C
Minimum ambient temperature (Ta min.)	5° C
Maximum surface temperature, steady state, at 40° C ambient	85° C (185° F)
Total heat dissipation (calculated, +/- 10%)	4950 BTU/hr.
Acoustic Data
Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output)	36.5 dB(A)
Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low)	35.1 dB(A)
Warranty
Fixture	2 years
Light Engine	5 years
Environmental
RoHS	Compliant
REACH	Compliant
WEEE	Compliant
Proposition 65	Compliant
Efficacy (max output)	33 lm/w
LWR*	1,096 lm/kg (479 lm/lb)
LWR = Lumen-to-Weight Ratio
Approvals
Global CB Certification/IECEE	IEC 60598-2-17 (IEC 60598-1)
EU safety	EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC	EN 55032; EN 61547; EN 55035; EN 61000-3-2,-11
US safety	UL 1573
US EMC	FCC Part 15 Class B
Canadian safety	CSA C22.2 No. 166
Canadian EMC	ICES-003 Class B, ICES-005 Class B
Australia/NZ	RCM

Included Items:
Two omega brackets with 1/4 turn fasteners for rigging clamp attachment, Safety and Installation Manual, and the Heavy-frost/wash filter (prism replacement): P/N MAR-91614060HU
