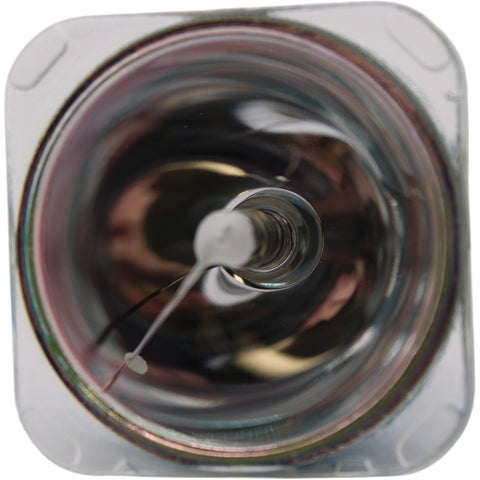

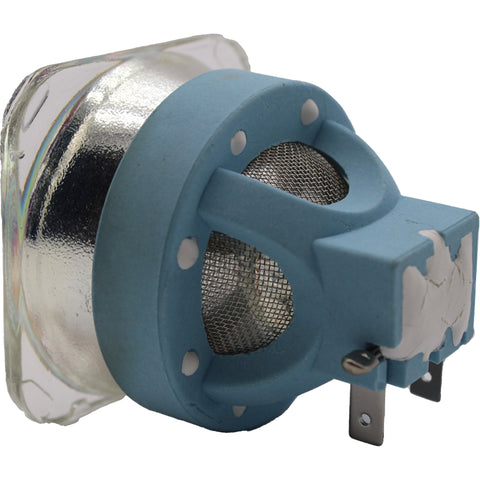

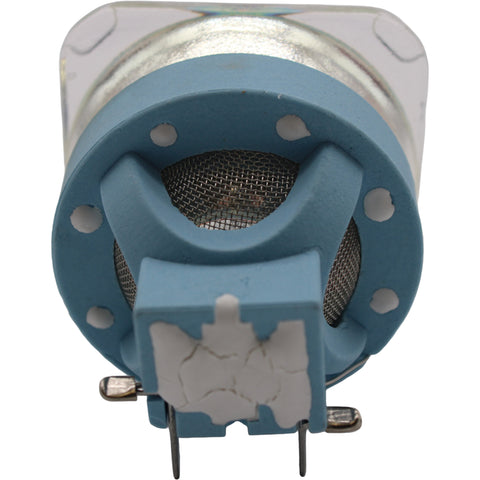

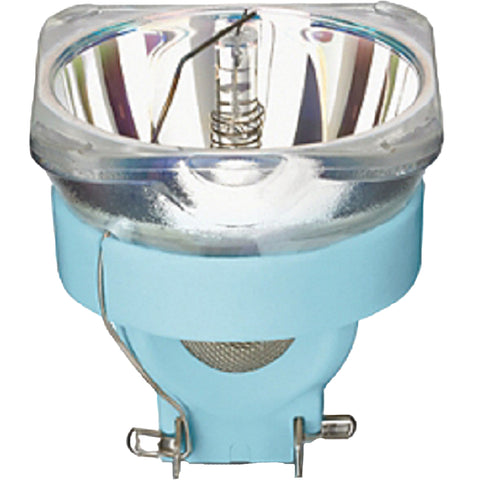

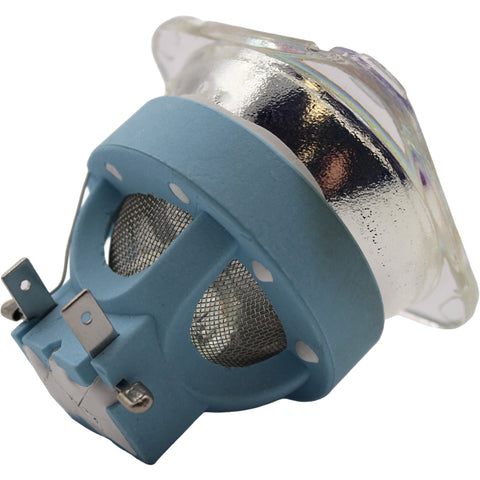

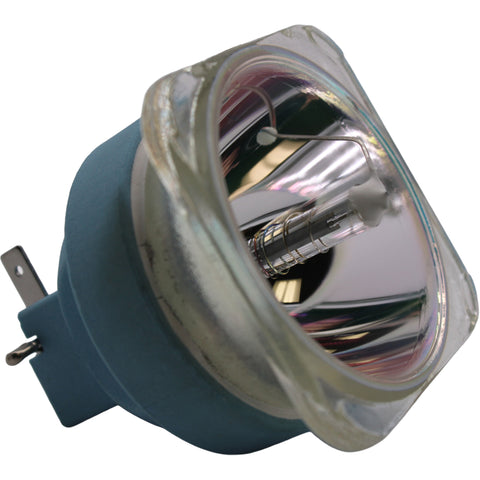

Jaspertronics™ 11R Stage Touring Lamp Replaces the MSD Platinum Broadway - 9281-917-05314
66 In Stock! Same Day Shipping Through 3PM CST! Need more? Call today @ 888.391.5596The new Jaspertronics replacement for the MSD Platinum 11 R lamps open up new levels of creative freedom in entertainment lighting, with powerful, compact and brilliantly intense light. Their compact, lightweight design provides the freedom to create smaller, lighter luminaires – for use at any location on stage. And their short arc, high color temperature and innovative reflector produce a sparkling, high beam intensity for outstanding color reproduction. They also offer long and reliable lifetime, high efficacy and fast replacement times. It all adds up to an intensely exciting creative experience.
Jaspertronics™ Replacement for MSD Platinum 11 R Specifications:
General Information
| Cap-Base |
- [ -]
|
| Operating Position |
UNIVERSAL [ Any or Universal (U)]
|
| Main Application |
Stage/Touring
|
| Life to 50% Failures (Nom) |
2000 h
|
| System Description |
Reflector-E20.9
|
Light Technical
| Color Code |
2
|
| Luminous Flux (Nom) |
12000 lm
|
| Chromaticity Coordinate X (Nom) |
0.300
|
| Chromaticity Coordinate Y (Nom) |
0.305
|
| Correlated Color Temperature (Nom) |
7800 K
|
| Color Rendering Index (Nom) |
-
|
Operating and Electrical
| Power (Rated) (Nom) |
250 W
|
| Voltage (Max) |
80 V
|
| Voltage (Min) |
55 V
|
Controls and Dimming
| Dimmable |
Yes
|
Mechanical and Housing
| Cap-Base Information |
-
|
Luminaire Design Requirements
| Pinch Temperature (Max) |
350 °C
|
Product Data
| Full product code |
871869653976700
|
| Order product name |
MSD Platinum 11 R
|
| EAN/UPC - Product |
8718696539767
|
| Order code |
53976700
|
| Numerator - Quantity Per Pack |
1
|
| Numerator - Packs per outer box |
8
|
| Material Nr. (12NC) |
928191705314
|
| Net Weight (Piece) |
85.000 g
|
This bulb is used in many custom applications as well as the following:
Martin Professional RUSH MH-7 Hybrid, PR Lighting PR-2206, PR Lighting XR 250 Beam II, PR XR 250 Beam II
While we are working to ensure each image we have posted is accurate, there may be items with an incorrect or missing image. Please be sure you are ordering the correct model.
If you have any questions about the 9281-917-05314-CB do not hesitate to contact via email at products@jaspertronics.com or by phone at 888-391-5596
