Creality CR-Scan Otter 3D Scanner - Four-Lens Stereo System, 0.02mm Accuracy, Full-Color Scanning, 20fps Speed, Handheld 3D Scanner for Mac, Windows, iOS, Android
1 In Stock! Same Day Shipping Through 3PM CST! Need more? Call today @ 888.391.5596The Creality CR-Scan Otter 3D Scanner sets a new standard in 3D scanning with its advanced four-lens stereo system, ultra-high precision, and versatile compatibility. Designed for both small and large object scanning, this scanner caters to a wide range of applications, from 3D printing and modeling to animation and design. With a scanning accuracy of up to 0.02mm, the CR-Scan Otter ensures every detail is captured with exceptional clarity.

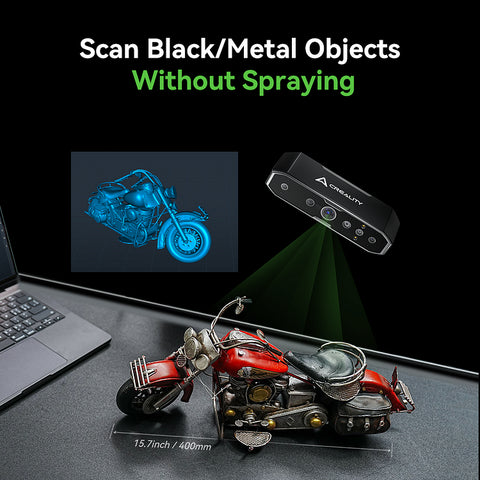

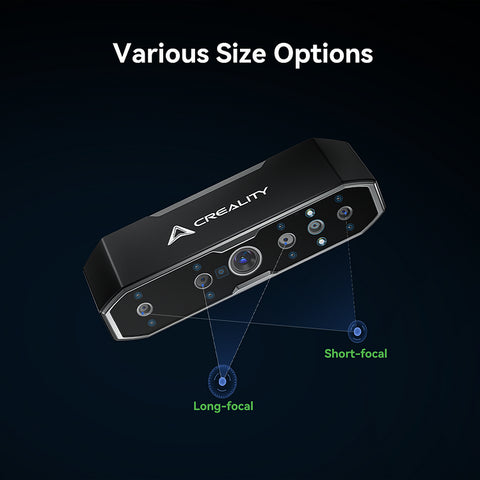

Equipped with two sets of dual lenses, the scanner handles objects ranging from 10mm³ to 2000mm³, making it ideal for scanning anything from tiny coins to large vehicles. Its infrared structured light technology ensures eye safety, achieving Class 1 laser safety, making it suitable for skin and face scans without worry. The scanning speed of up to 20fps ensures smooth and efficient operation, even when handheld.
The CR-Scan Otter features a full-color RGB camera and an exclusive color mapping algorithm, delivering 24-bit full-color scanning for vibrant and accurate texture reproduction. It also includes 8 infrared LEDs for enhanced marker recognition and 2 supplemental white LEDs for precise detail capture. The scanner supports multiple alignment modes (Geometry, Marker, Texture) and outputs in OBJ, STL, and PLY formats, ensuring compatibility with CAD, 3D modeling, and design software.
Designed for convenience, the scanner is lightweight at just 390g and compact, making it easy to handle and transport. It is compatible with Windows, macOS, iOS, and Android systems, expanding its usability across platforms. Whether you're scanning objects for professional use or personal projects, the Creality CR-Scan Otter 3D Scanner is the ultimate tool for precision and versatility.
Specifications Table:
Specification | Details |
---|---|
Model | Creality CR-Scan Otter |
Accuracy | Up to 0.02mm @ 60mm |
3D Resolution | 0.05-2mm |
Scanning Speed | Up to 20fps |
Min. Scan Volume | 10mm x 10mm x 10mm |
Max. Single Capture Range | 1350mm x 840mm @ 1000mm |
Technology | Infrared structured light |
Working Distance | 110mm-1000mm |
Color Mapping | Yes |
Alignment Modes | Geometry, Marker, Texture |
Output Formats | OBJ, STL, PLY |
IMU | Yes |
Color Supplemental Light | 2 white LEDs |
Marker Recognition Enhancement | 8 infrared LEDs |
Laser Safety | Class I (eye safe) |
System Support | Windows/macOS/iOS/Android |
Buttons | Touch |
Audible Prompt | Yes |
Calibration Board | Yes |
Operating Temperature | -10°C to 40°C |
Operating Humidity | 0-90% RH |
Input Power | 5V3A |
Data Interface | Type-C/USB3.0/USB2.0 |
Device Dimensions | 165mm x 37mm x 59mm |
Device Weight | 390g |
