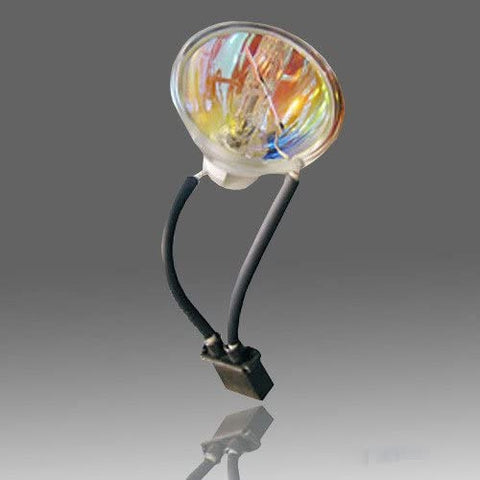

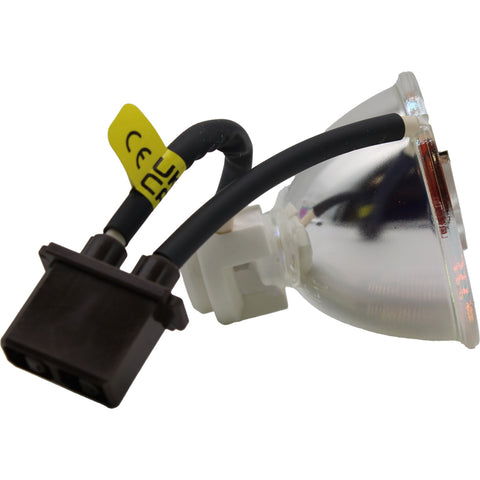

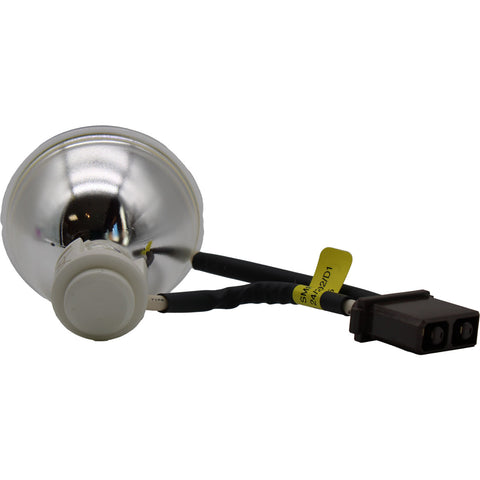

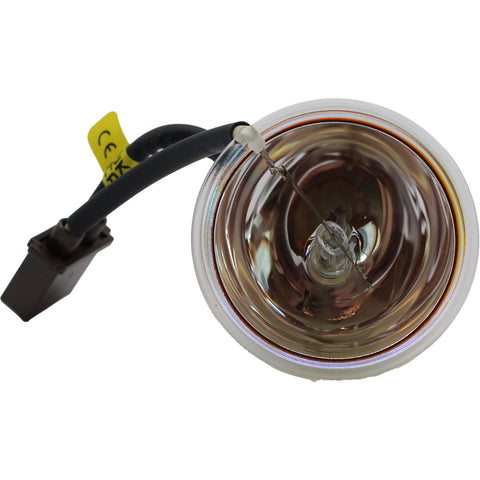

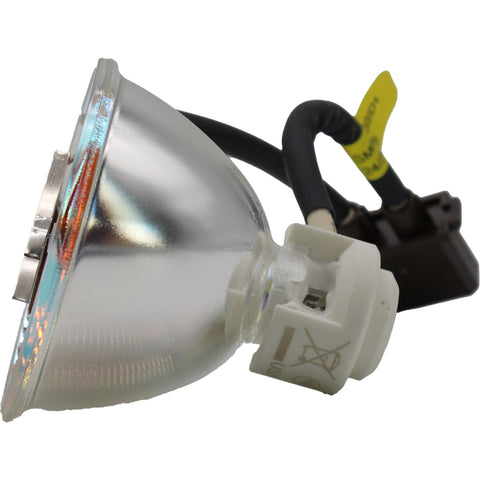

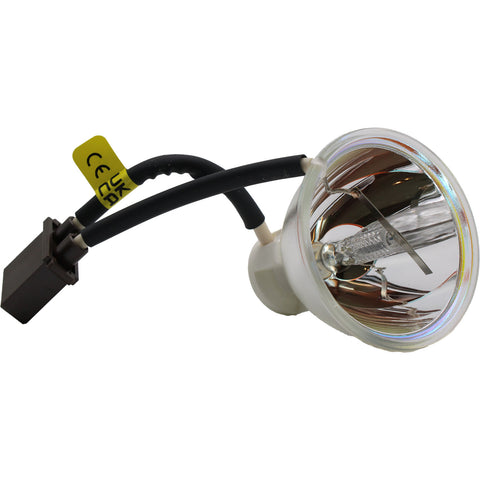

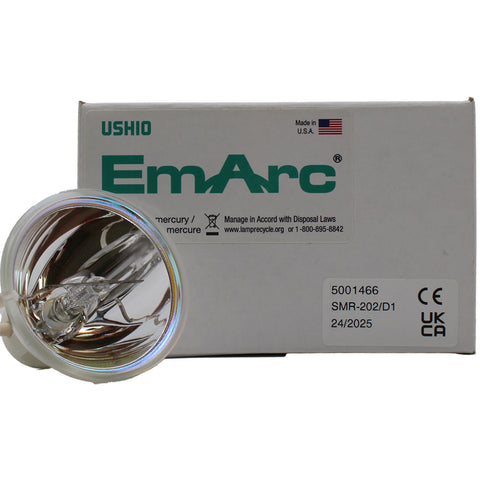

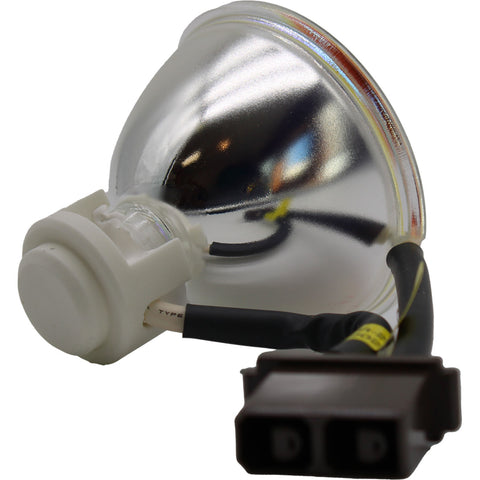

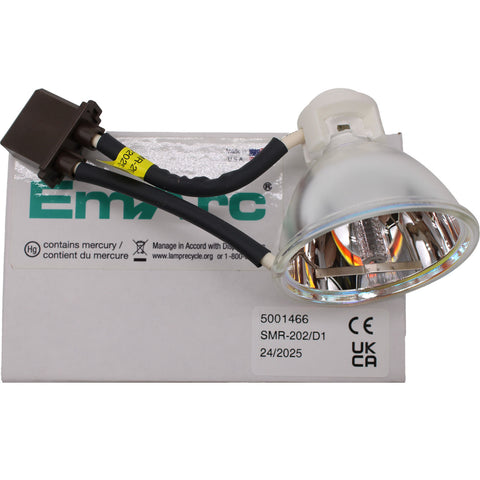

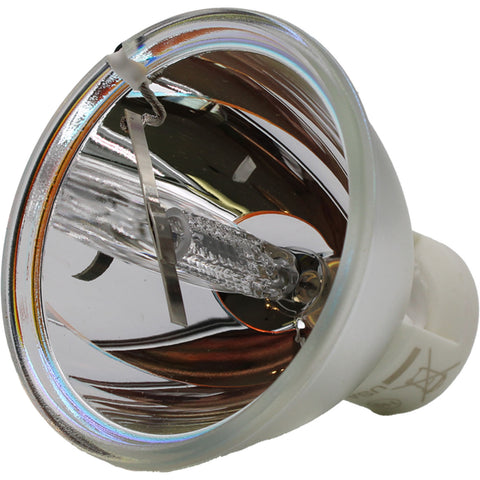

Ushio EmArc Enhanced SMR-202/D1 Metal Arc Discharge Lamp - 5001466
31 In Stock! Same Day Shipping Through 3PM CST! Need more? Call today @ 888.391.5596
Ushio EmArc Enhanced SMR-202/D1 Metal Arc Discharge Lamp - 5001466
Features & Benefits
- Up to 60 lumens per watt efficacy two times that of Xenon sources
- Highly durable, rugged elliptical and parabolic reflector designs – very high light path efficiencies for small diameter fiber optic bundle applications
- Precise filling control, electrode design and tight manufacturing tolerances with tipless arc tube construction allows for tightly confined and stable plasma discharge, long life with minimal color temperature drift over life, better optical control, no shadowing
- Far better color control over life than conventional metal halide lamps
- Hot reignition
- Power ranges from 160-200watts – versatility/ power tunability
- Custom reflector designs available
- Small arc gap sizes – down to 1.6mm highly effective optical collection capability
- Unique hybrid gas discharge technology – 2,500 hours of life; no internal pressure when cold
- Operation on lower cost DC power supplies reducing OEM system design costs
- 6500K correlated color temperature – Xenon-like light for crisp, white imaging
Applications
- Medical fiber optics for endoscopy or headlight illumination
- Biotechnology / Micro-Array
- Industrial UV Curing
- Machine Vision
- Cosmetic Dentistry
- Projection / Entertainment
- Microscopy
- Boroscopy
- Phototherapy
Ushio SMR-202D1 Specifications:
- Ordering Code: SMR-202/D1
- Lamp Series: EmArc
- Voltage: 56
- Wattage: 160-200
- Amperage: 3.50
- Burn Position: V
- Color Temp: 6900K
- Arc Gap: 2.0 mm
- Luminous Flux: 5900 lm
- Life: 4000 hr
- Reflecter: 70 mm
Works with the following units and more
- Phoebus Manufacturing Imarc
While we are working to ensure each image we have posted is accurate, there may be items with an incorrect or missing image. Please be sure you are ordering the correct model.
If you have any questions about the SMR-202/D1 do not hesitate to contact via email at products@jaspertronics.com or by phone at 888-391-5596
